# Admin UI behind an OAuth proxy

Keel can delegate authentication for its Admin UI and Admin API to an external reverse proxy such as oauth2-proxy. This mode is explicitly opt-in and leaves existing installations unchanged.

Use this setup when your identity provider supports OAuth or OpenID Connect (OIDC) and you do not want users to see Keel's local login screen or share Keel Basic Auth credentials.

# How it works

In external-proxy mode, oauth2-proxy authenticates the user and forwards the request and user identity to Keel:

browser -> Ingress -> Service:4180 -> oauth2-proxy -> 127.0.0.1:9300 -> Keel

Keel does not validate the provider's OAuth token or create a local session. Instead, it binds its HTTP server to the Pod's loopback interface and trusts the sidecar proxy. The Helm Service sends all traffic to oauth2-proxy on port 4180; port 9300 must not be exposed outside the Pod.

# Before you start

You need:

• a Keel image and chart version that includes external authentication proxy support;
• an OAuth/OIDC client registered with your identity provider;
• a public HTTPS URL for Keel, such as https://keel.example.com;
• a callback URL registered with the provider as https://keel.example.com/oauth2/callback;
• an existing Kubernetes Ingress controller and TLS Secret.

The example below uses generic OIDC settings. Change the issuer, client credentials, email domain, public URL, and TLS Secret for your environment.

# 1. Create the oauth2-proxy Secret

Generate a random 32-character cookie secret and store it with the provider client credentials. The Secret keys use oauth2-proxy's environment variable names.

kubectl create namespace keel

kubectl -n keel create secret generic keel-oauth2-proxy \
  --from-literal=OAUTH2_PROXY_CLIENT_ID='keel' \
  --from-literal=OAUTH2_PROXY_CLIENT_SECRET='replace-with-provider-client-secret' \
  --from-literal=OAUTH2_PROXY_COOKIE_SECRET="$(openssl rand -hex 16)"

The value delivered to oauth2-proxy must be 16, 24, or 32 bytes; the command above produces a 32-character value. Keep this Secret out of source control.

# 2. Configure Keel and oauth2-proxy

Save the following as keel-values.yaml and replace the example hostnames:

auth:
  mode: external-proxy
  proxyUserHeader: X-Forwarded-User
  proxyLogoutURL: /oauth2/sign_out?rd=/

basicauth:
  enabled: false

oauth2Proxy:
  enabled: true
  existingSecret: keel-oauth2-proxy
  extraArgs:
    - --provider=oidc
    - --oidc-issuer-url=https://identity.example.com
    - --redirect-url=https://keel.example.com/oauth2/callback
    - --email-domain=example.com
    - --scope=openid profile email
    - --prefer-email-to-user=true
    - --cookie-secure=true
    - --code-challenge-method=S256

service:
  enabled: true
  type: ClusterIP

ingress:
  enabled: true
  hosts:
    - host: keel.example.com
      paths:
        - /
  tls:
    - secretName: keel-tls
      hosts:
        - keel.example.com

Keep --pass-user-headers=true, which the chart configures for the sidecar, so oauth2-proxy replaces client-supplied identity headers. The chart pins the oauth2-proxy image by digest.

# 3. Install Keel

helm repo add keel https://charts.keel.sh
helm repo update
helm upgrade --install keel keel/keel \
  --namespace keel \
  --create-namespace \
  --values keel-values.yaml

The chart refuses unsafe or conflicting combinations, including external-proxy with Basic Auth, a missing oauth2-proxy Secret, a disabled sidecar, or a disabled Service.

Confirm that the Service targets the proxy rather than Keel:

kubectl -n keel get pods
kubectl -n keel get service keel -o jsonpath='{.spec.ports[0].targetPort}{"\n"}'

The Pod should have both keel and oauth2-proxy containers, and the Service target port should be 4180, not port 9300.

# 4. Sign in

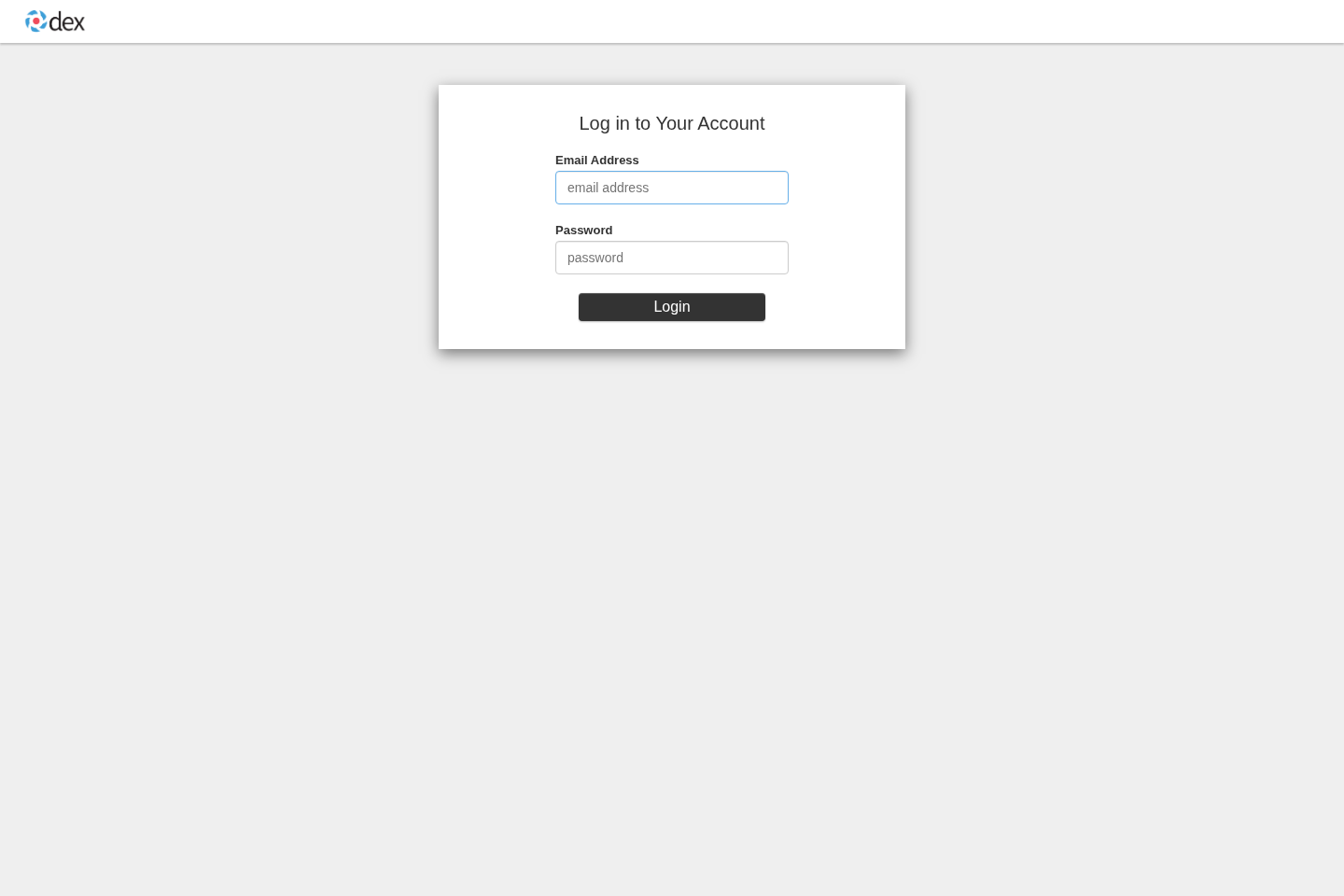

Open the public Keel URL. An unauthenticated request is redirected to your identity provider.

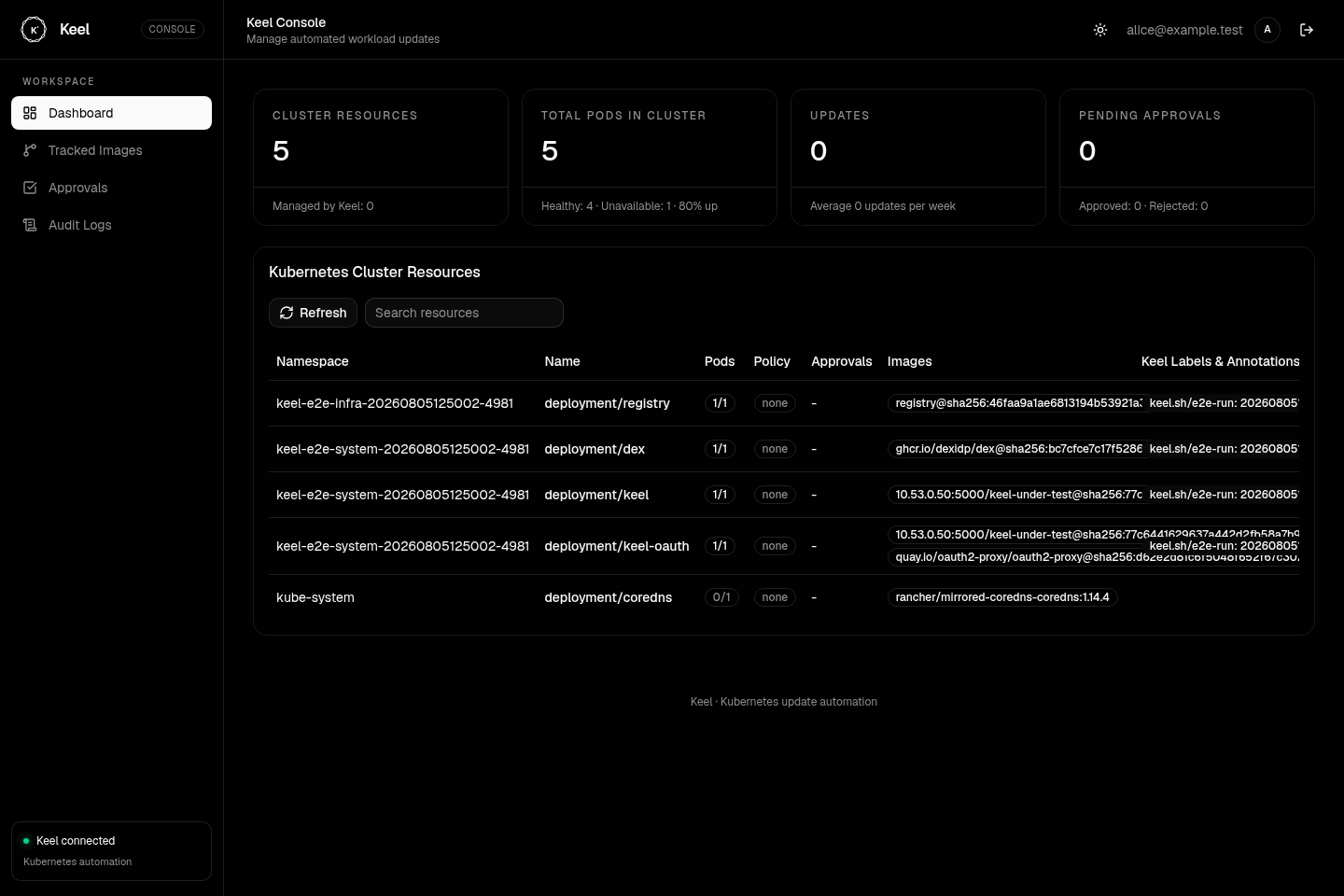

After authentication, oauth2-proxy returns the browser to Keel. The Admin UI opens directly without Keel's local login page.

The authenticated identity appears in the UI and is used for approval audit attribution. In external-proxy mode, Keel replaces a client-supplied approval voter name with this trusted identity.

# Ingress and webhook routes

Route /oauth2/*, the UI, static assets, and /v1/* through the same Service. Keel has no WebSocket routes.

oauth2-proxy protects every path by default, including registry webhook endpoints. If a provider must reach a webhook without logging in, add a --skip-auth-route rule only after reviewing that route individually. Every exception expands the public authentication boundary.

# Configuration reference

AUTH_MODE=basic requires both Basic Auth variables. External-proxy mode rejects Basic Auth variables, invalid identity header names, and absolute or cross-origin logout URLs. Proxy-only variables in other modes also fail at startup. Keel logs the selected mode, loopback address, and trusted identity header so the boundary is visible to operators.

# Logout behavior

The UI logout action clears the oauth2-proxy cookie through auth.proxyLogoutURL. Whether it also ends the identity provider's SSO session depends on that provider's configuration. If the provider session remains active, returning to Keel may sign the user in again immediately.

# Troubleshooting

# The Keel login page still appears

Check the running container's AUTH_MODE. It must be external-proxy. Also confirm that your deployed image contains external-proxy support and that the browser is reaching oauth2-proxy on port 4180.

# Requests return 401 after provider login

Check that oauth2-proxy is forwarding X-Forwarded-User, or set auth.proxyUserHeader to the stable header emitted by your proxy. Do not use a header that the proxy preserves from the original client request.

# Provider login redirects to an error

The redirect URL registered with the provider must exactly match --redirect-url, including scheme, hostname, and /oauth2/callback path.

# Helm rendering fails

Read the validation error and check that Basic Auth is disabled, the sidecar and Service are enabled, and oauth2Proxy.existingSecret is set. These checks intentionally fail closed rather than rendering a directly exposed Keel API.

# Local end-to-end verification

Keel's deterministic k3s test deploys Keel, oauth2-proxy, and Dex without an external OAuth account or repository secret. It verifies redirects, login, UI and API access, audit identity, direct-listener isolation, spoofing protection, and logout:

make e2e

The test creates and removes its own k3s environment and writes failure logs to .test/artifacts/. It intentionally refuses to run over an existing local k3s installation.
